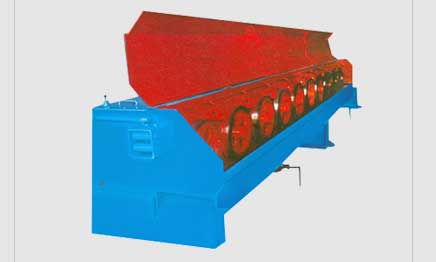

Rod Break Down Machine
Our range of rod break down machine is manufactured as per the latest International usages. We also have facility to customize our range according to the client's requiremens. These are available in various specifications, some of them are designed 9/11/13 die for aluminium and copper wires aong with spooling machine and dead block coiler.
Specifications:-
| Machine
Type |
13
D |
9
D |
| Inlet
diameter |
dia.8 |
dia.8 |
| Outlet
diameter |
dia.
1.2-dia. 3.2 |
dia. 1.2-dia. 3.2 |
| Drawing
line speed |
1200 |
600 |
| Drawing
dies No./Max. |
13 |
9 |
| Slip
ratio of m/c |
23.6% |
23.6% |
| Fix
speed capstan slip ratio |
20% |
20% |
| Capston |
Tungsten | |
| Capston
dia. (Max.) |
dia.
450 | |
| Fix
Speed Capston dia. |
dia.
450 | |
| Frame |
Weld,
Two conjunctions | |
| Main
Motor |
250
KW, DC Motor 160 KWm, DC
Motor | |
| Spooler
motor |
15
KW Three phase inductor
motor | |
| Revise
system |
PID
synchronous spooler | |
| Inverter
Control |
DC
speed regular + dual inverter
cntrol | |
| Transmission
type |
Gear | |
| Send-out-method |
Over
head | |
| Traversing
unit |
Dcelerate
motor | |
| Tension
control |
Pneumatic
balance by swing arm | |
| Lubrication
system of wire drawing |
All
mmerse type | |
| Suitable
diameter of spool |
dia.
800 pay-off frame in coils | |
| Capacity
for wire receiving |
200-1800 | |
| Power
source |
380
V | |
| Brake |
Pneumatic
brake |
|
